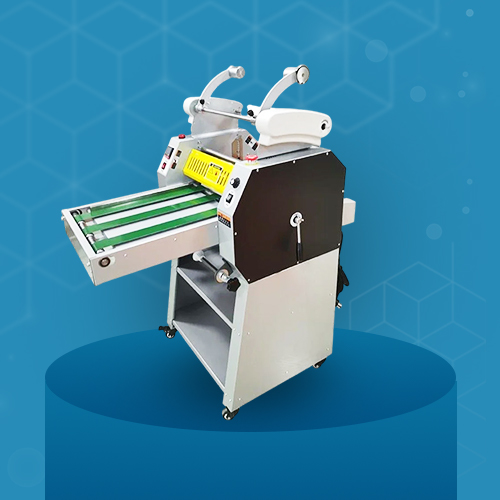

LMN 35E THERMAL LAMINATION MACHINE WITH CONVEYOR & FOIL TRANSFER MACHINE

LMN 35E THERMAL LAMINATION MACHINE WITH CONVEYOR & FOIL TRANSFER MACHINE

Description:

  • Both Side Lamination, Roll to Roll Lamination, foil fusing (optional)
  • Suitable for all kinds of paper laminating, roll to roll lamination, double side lamination, finished product winding, single side anti-curling, and the laminating effect is flat and does not bend.
  • Multifunctioning body, with optional ironing function.
  • The conveyor belt feeds paper synchronously and the finished product is automatically wound up.
  • Large diameter mirror steel roller, 100mm in diameter, chrome plated on the surface, with excellent mirror effect.
  • The laminating pressure is very compact, and the laminating effect is good—no bubbles, no snowflakes.
  • Intelligent temperature control system with precise temperature regulation. Maximum temperature: 160°C. Includes temperature out-of-control alarm system and double protection.
  • Large power 80W AC wheel box geared motor that can rotate forward/reversely without extreme speed regulation. Fastest laminating speed: 6m/min.

Product Parameters

Model No 35E
Max. Laminating Width 350 mm
Max. Laminating Thickness 2 mm
Laminating Speed 0~6 m/min
Lamination Both Side
Hot Laminating Temperature 160°C
Display LCD
Steel Roller Diameter 100 mm
Rubber Roller Diameter 75 mm
Heating Method Infrared Heating by Hot Air
Power 1600W
Anti Curling Function Yes
Motor Power 80W
Power Supply AC 220V, 50Hz
